Vaillant Eco Tec Plus system boiler hot water priority diagrams

posted on 20 Nov 2022

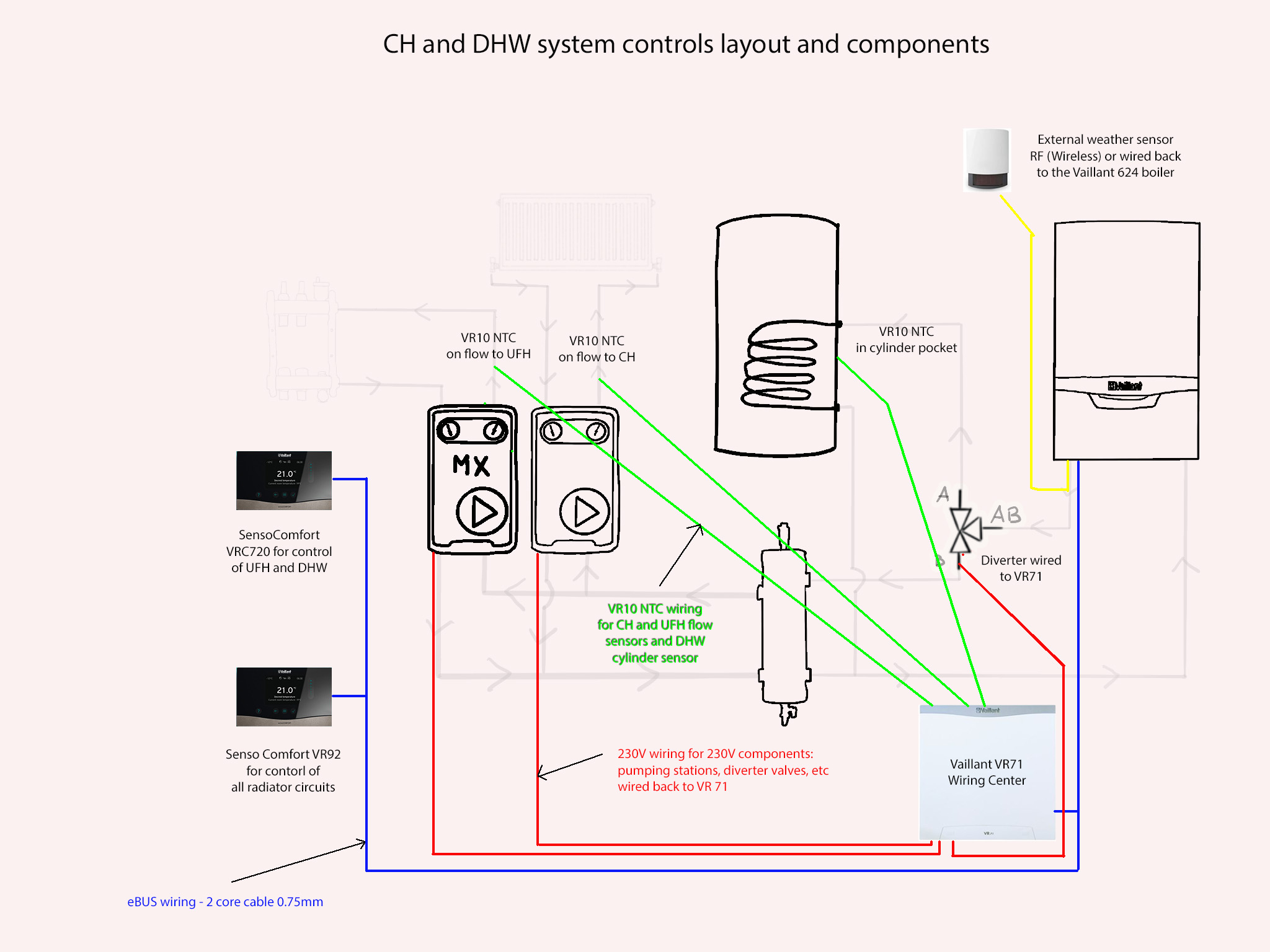

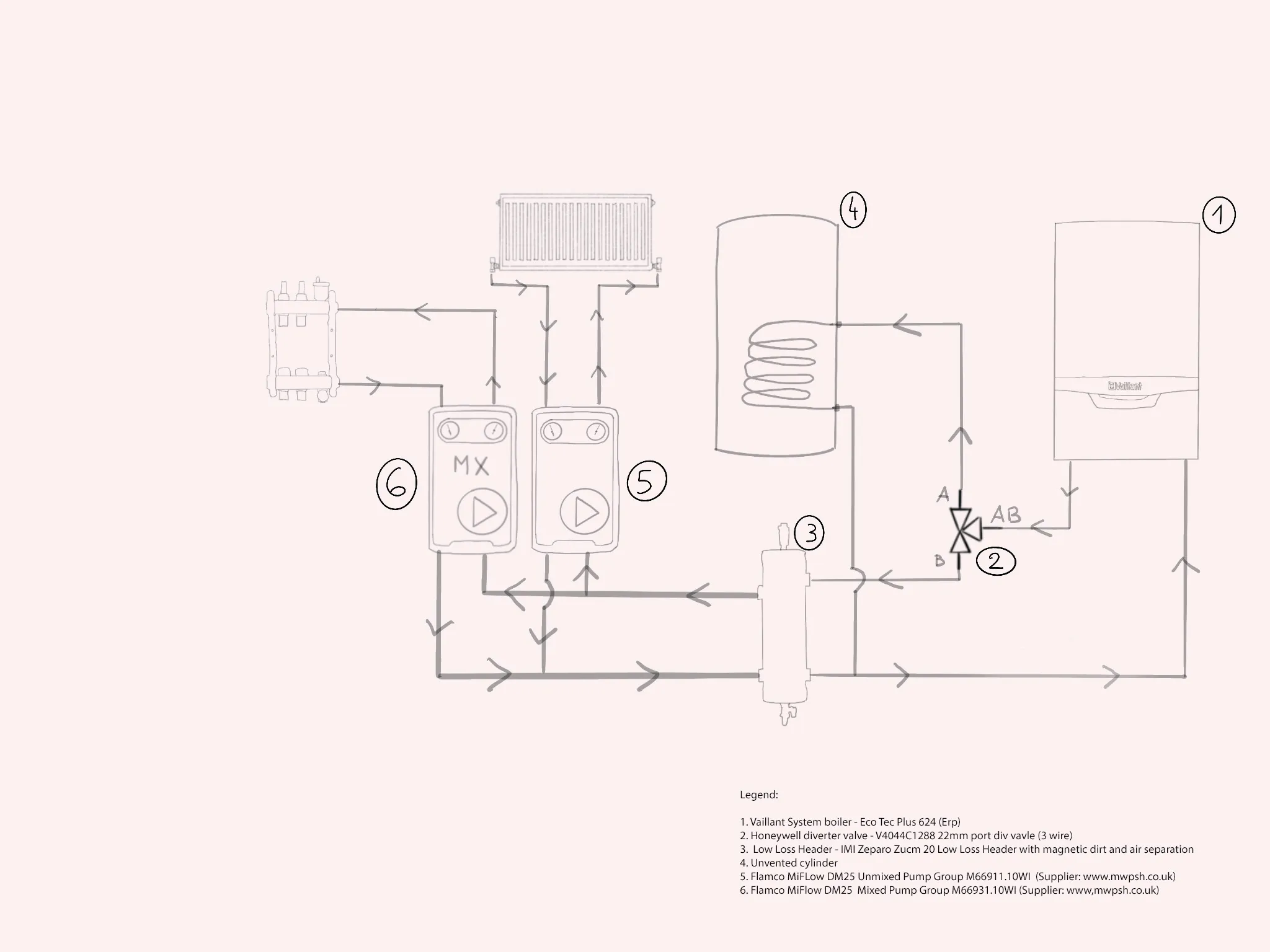

This are diagrams for domestic hot hot water priority set up using:

  • – Vaillant system boilers
  • – Vaillant SensoComfort controls with VR 71 wiring ceters
  • – System with hot water cylinder, radiators and UFH
